PP1 Series and PP2 Series

PP1 and PP2.jpg

PP1 Series and PP2 Series Offer Features for Industrial Applications

The push-pull function acts as a door-interlock switch or detector switch commonly use HVAC, security systems, commercial appliances and gaming machines.

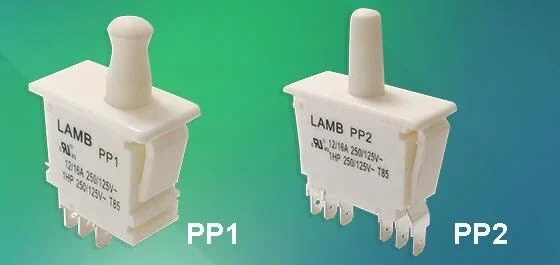

PP1 Series & PP2 Series Pushbutton Switches

The PP1 Series and PP2 Series are UL approved high power rated - up to 16A with 1H switches provide push-pull functionality to operate as a door interlock or detector switch activation and push and pull activation for manual maintenance. Choose from multiple body color and actuator height. Applications for PP1 Series and PP2 Series include a wide range of manufacturing equipment commercial appliances, gaming machines and more.

Specifications include:

Contact Rating: 16A @ 125VAC, 12A @ 250VAC
Electrical Life: 6,000 Cycles
Contact Resistance: 50mΩ Max
Operating Temperature: 0°C to 85°C
